LED Driver 150-288W - 24V 5-in-1 (Triac/0-10V/ELV)
LED Driver 150-288W - 24V 5-in-1 (Triac/0-10V/ELV)
Fast Shipping
Secure Payment
24/7 Support
Couldn't load pickup availability
Looking for Bulk Pricing?
Contact us here for a custom wholesale quote.

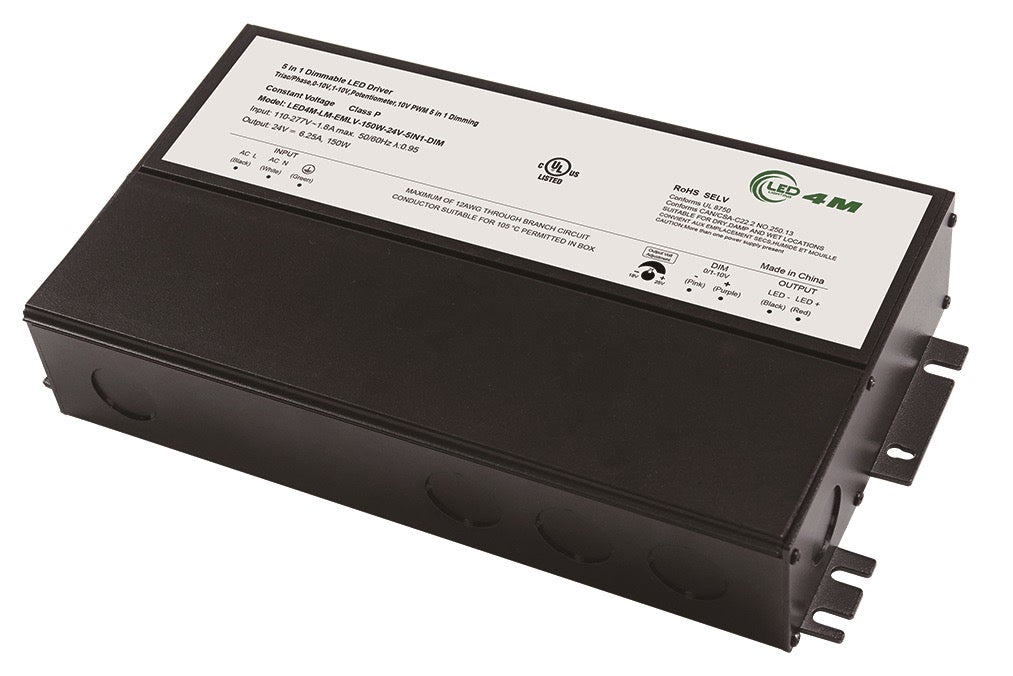

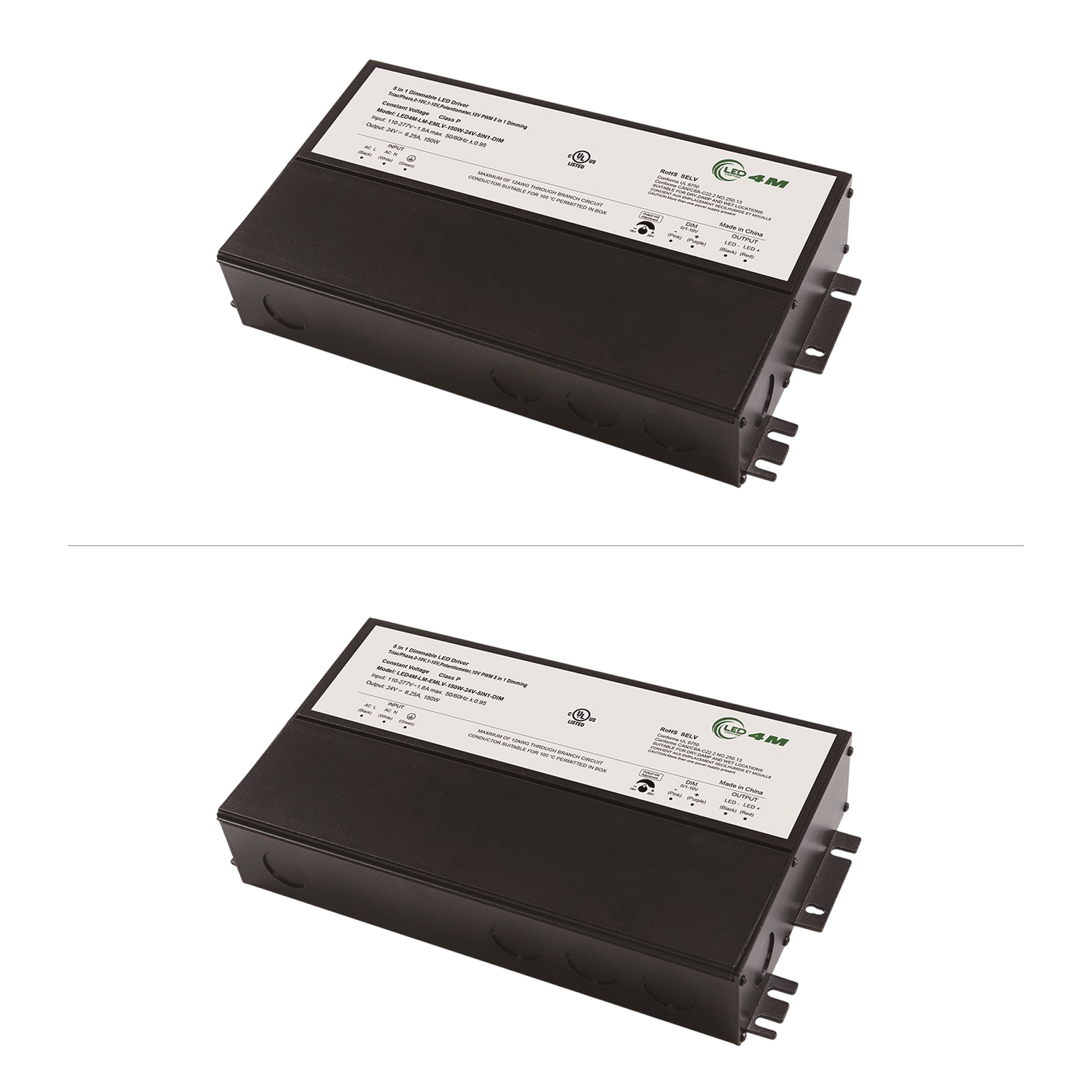

Power your large LED installations with SelixKala’s LED4M-LM-EMLV-288W-24V-5IN1-JC5-CL2. This high-performance LED driver provides reliable 24V DC output with 288W maximum load capacity and multiple dimming options, making it ideal for residential, commercial, and architectural lighting projects. Part of our LED Driver & Power Supply collection, it delivers smooth dimming, consistent output, and long-lasting performance for demanding LED applications.
Key Features
24V Constant Voltage: Stable output for LED strips and modules.
288W Maximum Load: Supports large-scale LED installations efficiently.
5-in-1 Dimmable: TRIAC / ELV / MLV / 0–10V / PWM dimming compatibility.
Safe & Reliable: Class 2 certified for secure operation and protection.
Durable Design: High-quality components ensure long-term reliability.
Ideal Applications
This LED Driver is ideal for:
- Large 24V LED strip lighting projects
- Cove lighting and architectural accent lighting
- Residential, commercial, and retail lighting projects
- Dimmable LED installations requiring flexible control
- Accent, ambient, or decorative lighting
Technical Specifications

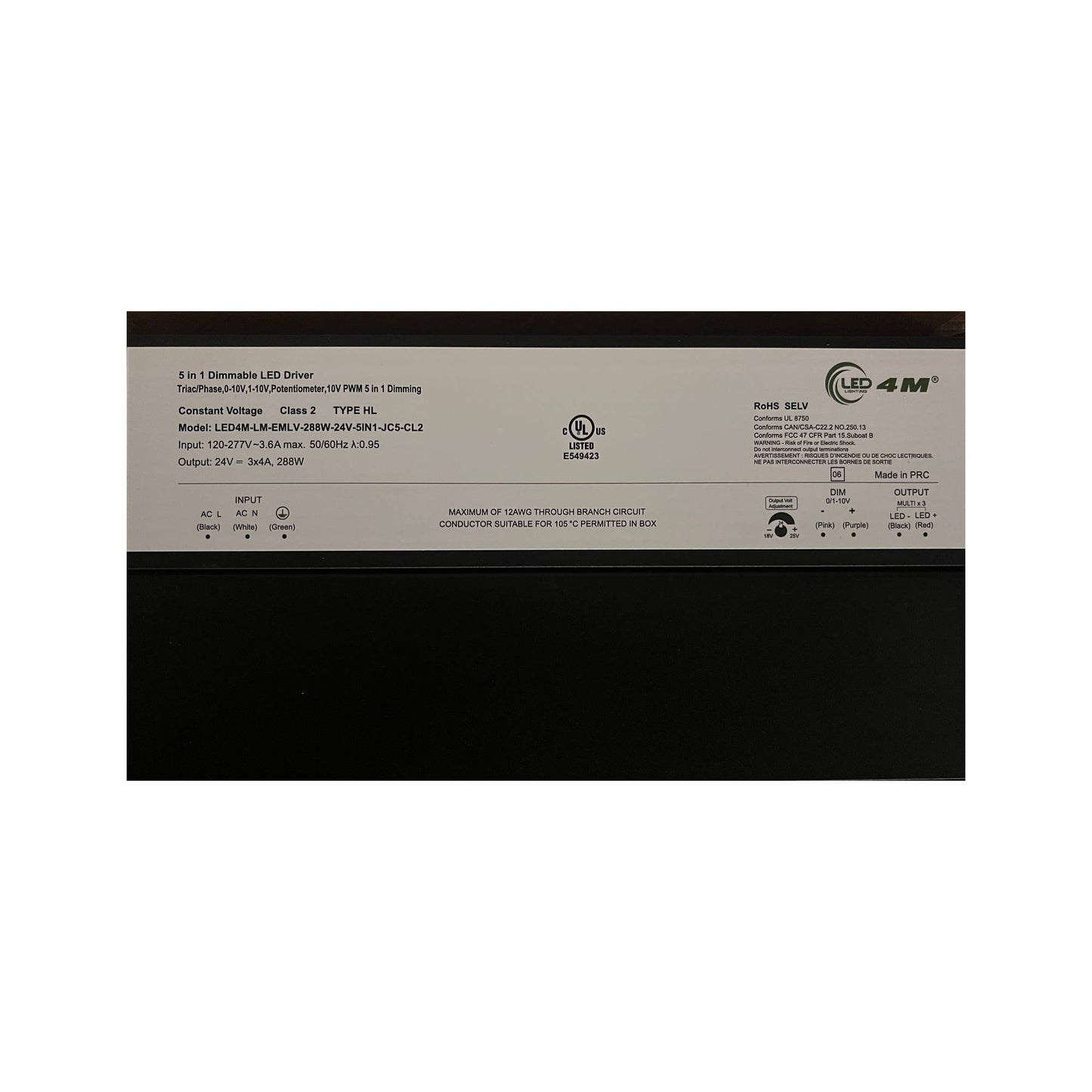

| Model No | LED4M-LM-EMLV-288W-24V-5IN1-JC5-CL2 |
| Brightness | N/A (Driver – controls connected LEDs) |
| Frequency | 50/60 Hz |
| CCT | N/A |
| CRI | N/A |
| Type | LED Constant Voltage Driver |
| Dimmable | Yes (TRIAC / ELV / MLV / 0–10V / PWM compatible) |
| Current Rating | 12A max (24V output) |
| Voltage | Input: 120–277V AC / Output: 24V DC |
| Certifications | UL Class 2 / CE / RoHS |
| Warranty | 5 Year Manufacturer Warranty |
| Lifespan | Up to 50,000 hours |
Selecting a 24V Multi-Mode Driver
Choose among listed power variants and check the exact 5-in-1 dimming interface against the controller and connected lighting load. See our commercial dimming comparison and other LED drivers and power supplies. Do not assume different dimming protocols are universally interchangeable.
